TORNADO-II PII / III 1.4 GHz
 Download PDF: TORNADO-II.pdf
Technical features
- CPU SOCKET 370 P II / III UP TO 1.4 GHz and 4 COM ports
- DRAM UP TO 512 MB - 4 COM - 1 LPT - 2USB ETHERNET 10/100 BASE T FDC - HDC - PS/2 MOUSE and KEYBOARD ports
- DOM FLASH or HDD
- P.S. 110/220 Vac or +24 Vdc
- DISPLAY TFT 10" (640x480)
330(W)x270(H)x86(D)
13"(W)x10.6"(H)x3.4"(D)
- DISPLAY TFT 15" (1024x768)
420(W) x 312(H) x 86(D)
16.5"(W) x 12.3"(H) x 3.4"(D)
- ALSO AVAILABLE AS 10"-12"-15"-18"-22"
- BOOT FROM USB FDD/CD-ROM/ HDD/PEN
- AVAILABLE WITH O.S. XP Embedded
|
PASS on IMAGE TO ENLARGE |

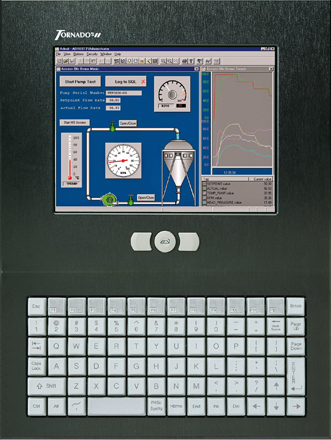

TORNADO-II
with IP65-NEMA4/4X
KEYBOARD and TOUCH SCREEN
|
PASS on IMAGE TO ENLARGE |

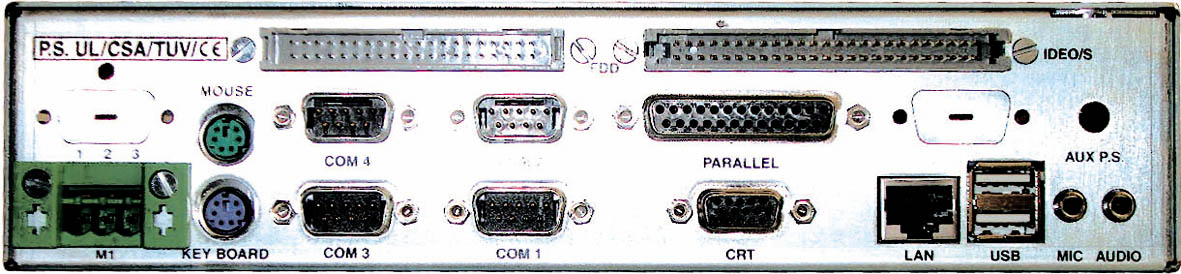

TORNADO-II
SIDE CONNECTORS
TORNADO-II with expansion module BUS/2-PCI (adds 50 mm - 1.96" to depth)
option IP65 Keyboard and TOUCH |
|
Download : TORGB1.jpg ( 445Kb)
Download : TORGB2.jpg ( 447Kb)
|
| NCS reserve the right to make changes in the specifications without notice. NCS assume no liabilities arising from the application or use of any product described herein. NCS assume no obligation to correct any errors herein or advise the use of this text of any corrections if such to be made. |
