NCS - TORNADO-IV

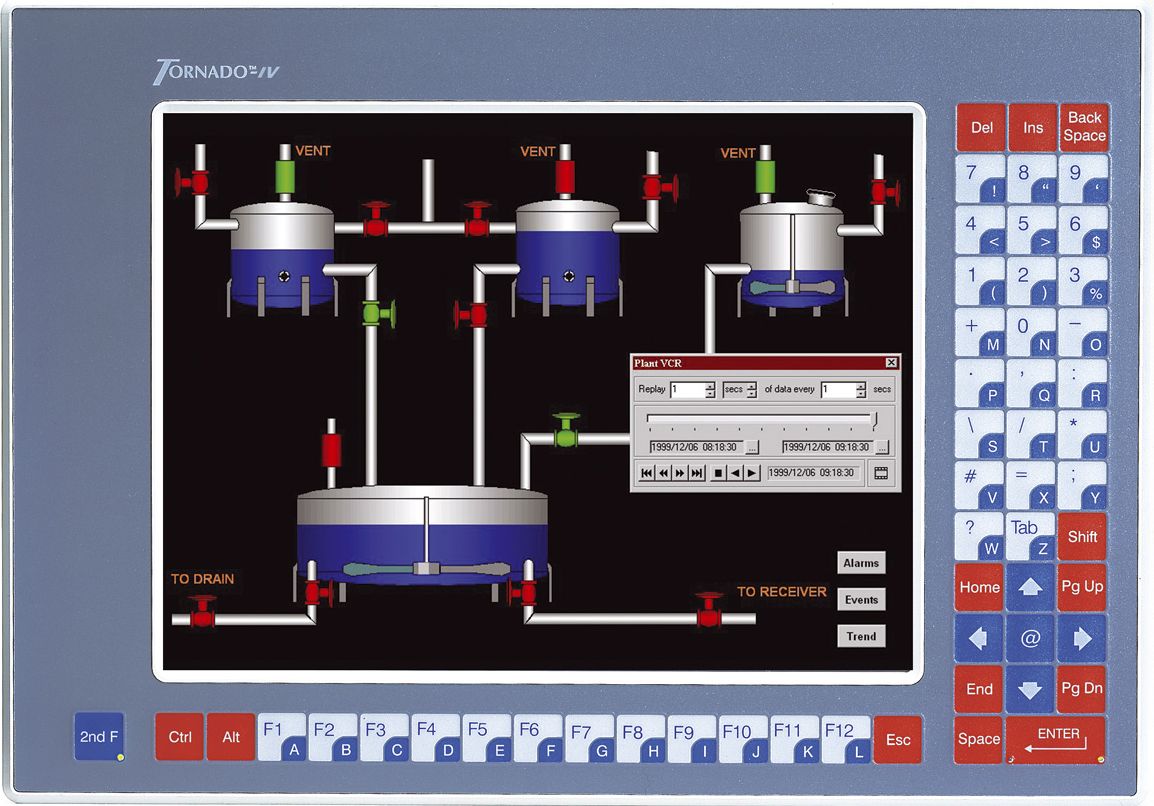

PASS on IMAGE TO ENLARGE	TORNADO-IV P4 Download: TORNADO-IV.jpg Technical features CPU PENTIUM UP TO 2.8 GHz DRAM UP TO 1 GB 4 Serial Ports - 1 LPT - 4 USB 1 LAN 10/100 BASE T FDC HDD - PS/2 MOUSE and KEYBOARD ports FLASH DISK up 6Gb CRT - LVDS TFT 18/24 bit SOUND interface ext. adapter P.S. 110/220 Vac or internal DCD/DC +12 Vdc or +24 Vdc DISPLAY TFT 10" (640x480) 330(W)x270(H)x86(D) 13"(W)x10.6"(H)x3.4"(D) DISPLAY TFT 12" (800x600) 350(W)x270(H)x86(D) 13.7"(W)x10.6"(H)x3.4"(D) DISPLAY TFT 15" (1024x768) 420(W)X312(H)X86(D) 16.5"(W)X12.3"(H)X3.4"(D)
PASS on IMAGE TO ENLARGE	TORNADO-IV P4 with IP65-NEMA4/4X membrane KEYBOARD KB3 and MOUSE op. TOUCH SCREEN
PASS on IMAGE TO ENLARGE	TORNADO-IV P4 SIDE CONNECTORS with TORNADO-IV is available a expansion module BUS/2-PCI (adds 32 mm – 1.25" to depth)
NCS reserve the right to make changes in the specifications without notice. NCS assume no liabilities arising from the application or use of any product described herein. NCS assume no obligation to correct any errors herein or advise the use of this text of any corrections if such to be made.
